Ultra-Lok stainless steel clamps with a lock formed under full tension. These clamps are applied with the UL4000-D battery-operated tool.
Specifications & features
| Catalogue Number |
Clamp Inside |
Clamps per Box |
| UL2109 | 69.9 | 50 |
| UL2119 | 76.0 | 50 |
| UL2129 | 88.9 | 50 |
| UL2139 | 101.6 | 25 |
| UL2149 | 114.3 | 25 |
| UL2159 | 127.0 | 25 |
| UL2709 | 133.4 | 25 |
| UL2169 | 152.0 | 25 |
| UL2179 | 165.0 | 25 |
| UL2189 | 177.8 | 25 |
| UL2199 | 203.2 | 25 |
| UL2289 | 228.6 | 10 |
Product details & applications
Band-It Ultra-Lok Clamps can be applied 3–5 times faster than band and buckle hand tools.
They have a unique lock, formed under full tension, that maximizes tightness.
The clamps are available as free-end band and buckle or double wrapped preformed clamps. Type 201 1/4 Hard Stainless Steel Band provides greater material strength, allowing tighter clamps and double wrapping for additional strength.

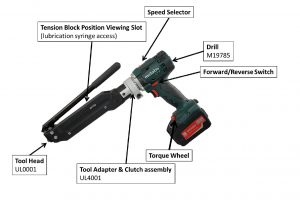

Clamps can only be applied with the UL4000-D Battery Operated Tool
PPA Coated 316 Stainless Steel Cable Cleats & Band
ONLY suitable for Ultra-Lok Clamps or Ultra-Lok Band

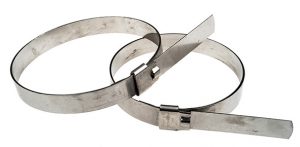

Band-It Ultra-Lok Clamps
Stainless Steel Type 201 1/4 Hard.
Clamp Width: 19.05mm
The best choice for demanding applications.

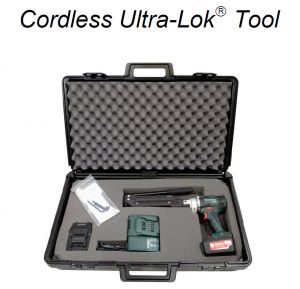

Apply Ultra-Lok Clamps quickly with the UL4000-D battery powered tool.
Compatible tools & related products
Related downloads
Catalogues & Product Guides
| Document | Format |
|---|---|
| Band-It Band & Buckle Electrical Catalogue | |
| Band-It Ultra-Lok Clamps | |
| Band-It IDEX Product Solutions Guide | |
| Band-It Applications | |
| Band-It Hose Clamp Catalogue | |
| Comparative Analysis Of Band-It Clamps |
Tools & Instructions
| Document | Format |
|---|---|
| Band-It Tools & Instructions | |
| Band-It Product List And Tool Manuals | |
| UL4000-D Cordless Ultra-Lok Instruction Manual |
Need help choosing a Band-It product?
Contact UES Promura for product advice and technical support.
